Khoom Taw Qhia

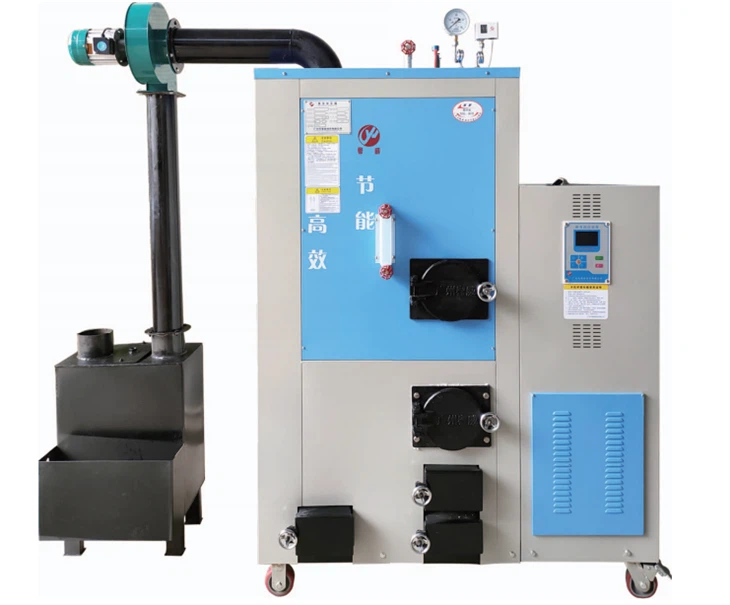

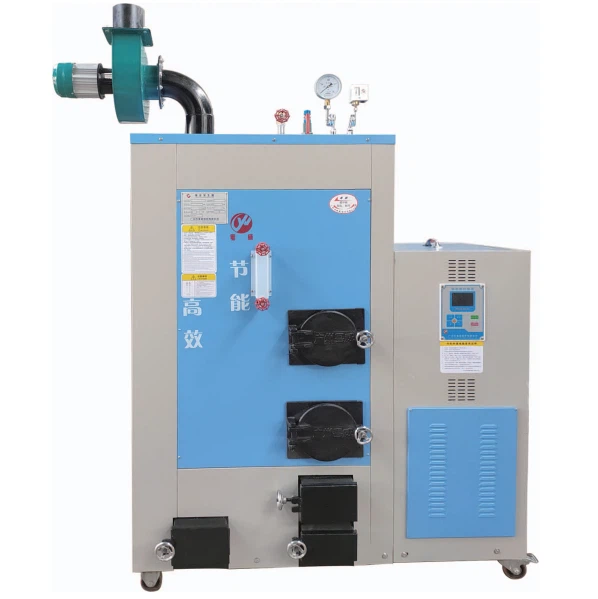

Pellet raug rho tawm haujlwm lub tshuab hluav taws xob yog qhov muaj peev xwm tsawg chav boiler, tsis xav tau kev kuaj xyuas kev nyab xeeb los ntawm tsoomfwv chav haujlwm. Nws yog ib tug me me biomass chav boiler uas dav siv nyob rau hauv ironing, zaub mov ua noj, tshuaj siv, tsev kho mob thiab tsev so. Nws muaj qhov zoo ntawm kev ua haujlwm siab tsis siv neeg, ua haujlwm nrawm nrawm, siab ua kom qhuav. Piv rau cov roj, roj, hluav taws xob cua sov boiler, nws tuaj yeem txuag tau 30 feem pua -80 feem pua ntawm cov nqi khiav!
Khoom nta
High efficiency & txuag hluav taws xob | 1. Semi-gasification compound combustion technology-- Roj burnout tus nqi yog tshaj 98.5 feem pua .; 2.Unique multi-rov qab rauv tsim, loj tshav kub hloov chaw thiab micro-negative siab combustion--thermal efficiency ntau tshaj 93 feem pua .; 3.Txuag tus nqi txog li 30-80 feem pua piv nrog cov khoom siv ib txwm muaj (saib cov lus sib piv ntawm kev siv hluav taws xob hauv qab no); |
Ib puag ncig | 1. Biomass roj-- carbon tsawg, tsis muaj leej faj thiab nitrogen emissions 2. Tag nrho combustion, multistage plua plav tshem tawm qauv, tsis muaj pa taws thiab tsis muaj suab nrov 3. Cov ntsuas hluav taws xob qis qis dua "Boiler Air Pollutant Emission Standard" (GB13271-2001). |
ruaj khov & txhim khu kev qha | 1. xyoo dhau los ntawm cov khoom siv txuag hluav taws xob; 2. Kev tswj xyuas ntse, siab, dej tsis txaus, kev nyab xeeb valve, pub, huab cua faib, qhuav kub thiab lwm yam khoom siv tiv thaiv kev sib tshuam kom ruaj khov; 3.Peb-theem pub mis nrog micro-negative siab combustion hom--tsis muaj pa luam yeeb; 4. Tsim raws li tus qauv txheej txheem ntawm boiler, txhua yam khoom raug kuaj los ntawm cov dej siab, tsis muaj kev puas tsuaj, kev tuav tuav, efficiency thiab stability, thiab nruj me ntsis xyuas nrog daim ntawv pov thawj. |
Yooj yim & ua tau zoo | 1. Kev tshuaj xyuas dawb; 2. Tag nrho tsis siv neeg ntse tswj, tsis tas yuav tsum tau ua haujlwm; 3. Compact qauv, tiav configuration, universal roj hmab log, yooj yim thauj thiab installation; 4. Ignition, hluav taws xob tswj tes self-integrated configuration, pub noj, hluav taws soj ntsuam, dej phwj tuaj, tshauv tshem tawm, dub thiab dawb qib dej thiab lwm yam humanized tsim, saj zawg zog khiav hauj lwm, yooj yim txij nkawm; |
Elegant tsos | 1. Cov qauv siv hluav taws xob zoo li patent, qauv txheej txheem tsim qauv, compact qauv, me me chaw ua haujlwm, yooj yim tab sis dhau qhov yooj yim; 2. 5 hnyav ntawv hlau pretreatment, 260 degree hmoov txau kub kub ci xim, ntev li tshiab, ruaj; 3. Cov qauv, cov khoom siv thiab cov xim pleev xim txais yuav ntsuab tripod lub zog txuag thiab kev tiv thaiv ib puag ncig tsim lub tswv yim, cov duab tshiab thiab zoo nkauj zoo nkauj; |
Technical parameters
Qauv | Kev ntsuas evaporation (kg / h) | Kev siv roj (kg / h) | Ua haujlwm siab (MPa) | Chav kub | Qhov Loj (L * W * H) (mm) | Qhov hnyav tag nrho (kg) |
LSG0 1-0 7-S | 100 | 17 | 0.7 | 170 degree | 1410*650*2300 | 520 |
LSG0 2-0 7-S | 200 | 25 | 0.7 | 170degree | 1500*750*2420 | 650 |
LSG0 3-0 7-S | 300 | 30 | 0.7 | 170degree | 1600*850*2420 | 750 |
LSG0 5-0 7-S | 500 | 50 | 0.7 | 170degree | 1600*1600*3300 | 1500 |
Paub meej ntau lawm
Kev txheeb xyuas nyiaj txiag
Sib piv cov roj noj ib 100kgs chav ($USD):
Hluav taws xob | 0#diesel | LPG | Roj | Biomass | |
Rated roj noj | PEB 72 KW/H | 6.8KG / H | 16.5 NM3/H | 7.8nm ua3/H | 16 KG / H |
Roj nqi | 1 / KW | 6/KG | 6/KG | 3/M3 | 1/KG |
Roj nqi ib 100kgs chav | 72 | 40.8 | 99 | 23.4 | 16 |
txheeb ze zog efficiency | 77.78% ua | 60.78% ib | 83.84% ua | 31.62% ib | |
Kev txuag nqi / teev (80 feem pua muaj peev xwm) | 6.60 | 2.92 | 9.78 | 0.87 | |
Kev txuag nqi / hnub (8 teev) | 52.77 | 23.37 | 78.21 | 6.97 | |
Kev txuag nqi / hli (26 hnub) | 1371.91 | 607.56 | 2033.36 | 181.29 | |
Kev txuag nqi / xyoo (11 lub hlis) | 15090.62 | 6684.04 | 22363.56 | 1987.54 | |
Kev txuag nyiaj / 3 xyoos | 45271.85 | 20022.67 | 67105.40 | 5977.36 | |
Kev txuag nyiaj / 5 xyoos | 75453.09 | 33420.20 | 111832.52 | 9967.17 |
Cov khoom tsim nyog
Peb qhov kev pabcuam
Peb yuav twv peb tus kheej nrog cov khoom zoo, zoo meej tom qab-muag kev pab cuam, thiab zoo coj mus muag lub koob npe nrov kom tau raws li cov neeg siv khoom txaus siab.
FAQ
1. Yuav ua li cas rau nruab?
Nws yog heev qauv rau nruab. Yuav muaj cov lus qhia thiab muaj 3 txoj hauv kev uas peb feem ntau txhawb nqa: hu xov tooj; xa cov yeeb yaj duab; video tham nrog tus kws kho mob.
2. Yuav tswj li cas?
Txhawm rau siv cov tshuaj ntxuav dej. Thaum muaj teeb meem nrog lub tshuab, nws feem ntau ua haujlwm. Kev sib txuas lus hauv xov tooj thiab video tuaj yeem muaj. Cov khoom puas tuaj yeem hloov tau ncaj qha. Lub neej kev pab cuam yog ntau tshaj 5 xyoo nyob rau hauv ib txwm siv.
3. Lub zog txuag hluav taws xob yog dab tsi?
Txuag tus nqi txog li 30-80 feem pua piv nrog diesel, natural gas thiab hluav taws xob.
4. Vim li cas thiaj xaiv peb?
A. Ntau lub zog txuag: tuaj yeem txuag hluav taws xob txog li 20-30 feem pua piv rau lwm lub npe hauv Suav teb uas muaj peev xwm tib yam.
B. Nrog rau ntau tshaj 20 xyoo kev paub: paub tab technology thiab ruaj khov zoo.
C. Tsawg tsis ua hauj lwm tus nqi, yuav luag tsis muaj nqi tom qab muag.
