Khoom Taw Qhia

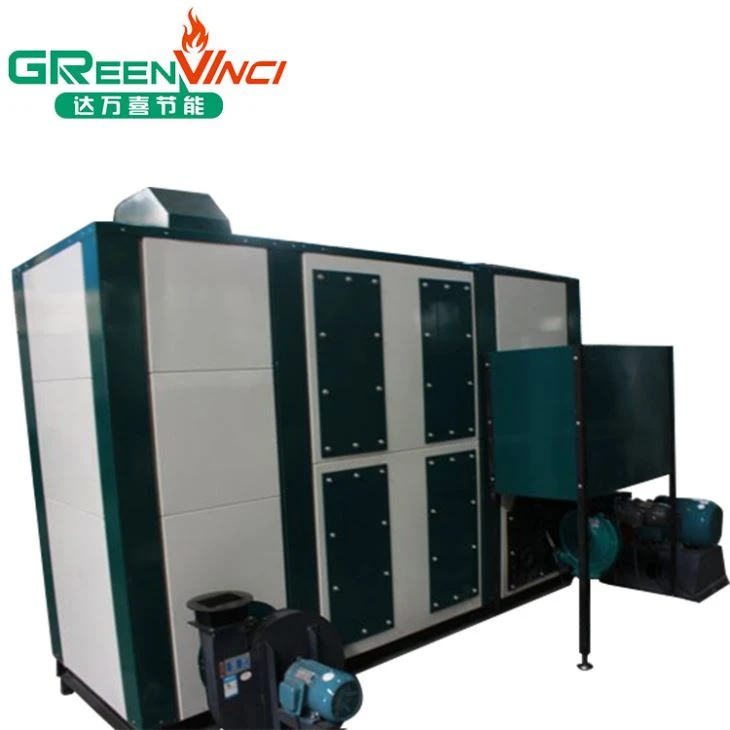

Cov cua kub cua txias muaj qhov zoo tshaj plaws rau kev kho mob, txau, tha xim, electroplating thiab lwm yam kev lag luam kev kho thiab ntau txoj kab; textile printing thiab dyeing, cov khaub ncaws ntau lawm thiab lwm yam kev ua tiav, cov taub, cov ntim thiab lwm yam yuav tsum tau ci; kev ua liaj ua teb, kev yug tsiaj txhu, thiab lwm yam khoom siv cua kub cua, cua txias thiab cua sov. Nws yog qhov kub tshaj huab cua, nws yog siv ntoo pellet (biomass pellet) uas muab cua dawb huv rau.
Khoom khoom noj khoom haus
KHOOM | GV-20-H | GV-30-H | GV-45-H | GV-60-H | GV-90-H | GV-120-H | GV-150-H | |
Tshaj Tus Nqi Nqis Calorific | 10 4 lub hlis | 20 | 30 | 45 | 60 | 90 | 120 | 150 |
Siab | Mpa | Atmospheric Siab | ||||||
Thermal Efficiency | % | 86% | ||||||
Huab cua Outlet | hli | 350 * 400 | 350 * 400 | 400 * 700 | 500 * 700 | 600 * 800 | 600 * 1000 tauj | 800 * 1000 tauj ib xyoos |
Cua Inlet | hli | 300 * 350 | 350 * 400 | 350 * 450 | 400 * 500 | 450 * 500 | 500 * 550 | 500 * 550 |
Cua system | kw | 0.75 | 0.9 | 1.1 | 1.5 | 2.2 | 2.2 | 3.0 |
Tsim Kev Txawj Ntse | kw | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 5.5 | 7.5 |
Kev Ntxuam Ntxuam | kw | 4.0-5.5 | 5.5-7.5 | 7.5-11 | 11-15 | 15-18.5 | 18.5-22 | 22-30 |
Kev haus luam yeeb hla | hli | 160 | 220 | 270 | 320 | 375 | 375 | 375 |
Peev Xwm | kg | 150 | 200 | 200 | 300 | 300 | 400 | 400 |
Nruam Lub Sij Hawm Kev Sijhawm | h | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
Nyhav | kg | 2230 | 2780 | 3150 | 3580 | 3930 | 4230 | 4700 |
Qhov Cub Xob (L * W * H) | hli | 3400 * 800 * 1600 | 3620 * 900 * 1760 | 3800 * 1000 * 1860 | 4100 * 1100 * 1960 | 4300 * 1250 * 2060 | 4600 * 1400 * 2160 | 4900 * 1550 * 2260 |
Khoom Nta
1) Cov kev txawj ntse tswj lub ntsej muag, tsis siv neeg pub, tswj kev tswj kub tsis zoo, tuaj yeem tiv cav tseb, tiv thaiv kom tsis muaj teeb meem, ua txhaum cai
2) Lub cub tawg yog tsim los ntawm 304 xim hlau tsis muaj 5mm tuab tuab, thiab txais kev siv thoob ntiaj teb "multi-hearth, multi-return, rov qab txias dua" technology los txhim kho kev ua haujlwm.
3) Ua kom muaj cua daj cua dub tshem tawm kom ua tau pa tsis muaj pa thiab muaj plua plav zom zaws.
4) Cov txheej txheem boiler muaj ntau hom txheej tiv thaiv kev ruaj ntseg; Tshem tawm qhov tshwm sim ntawm kev nplua thiab kub.
5) Siv cov khoom siv roj tua hluav taws ua kom lub cev ua kom tiav, cov hmoov tshauv yog 86% tsawg dua ntawm cov tshuaj tua hluav taws (coj kev sib txuas ncaj qha).
Cov lus qhia ntau lawm
 | ||
Kev Tswj Alarm |
Tsim Kev Txawj Ntse |
burning chamber |
Pub Ntsia Hlau |
Pub mis nyuj khov |
Silos |
Kev Ntxuam Ntxoo |
Kev Ntsuam Economic
600,000 kcal / h kub cua txias tsim kom muaj ntau yam kev pabcuam nyiaj txiag hauv kev sib txawv.
Cov nram qab no yog cov nqi sib piv ntawm ntau lub luv fuels: (RMB)
Roj | 0 # Diesel | Natural roj | Hluav taws xob | Biomass pellet |
Cov nqi tshav kub | 10200kcal / kg | 8500kcal / Nm 3 | 860kcal / KWH | 4000kcal / kg |
Burner zog (Piv txwv) | 600,000 kcal / hr | |||
Xav tau roj ntau ntau | 67kgs | 72Nm 3 | 698kw | 176kgs |
Roj nqe | 8 / kg | 4.8 / Nm3 | 1 / kwh | 1.1 / kg |
Cov nqi tshav kub hloov | 88% | 98% | 100% | 85% |
Ruv nqi (RMB) | 536 | 346 | 698 | 212 |
Nqi txuag | 324 | 134 | 486 | |
Nqi txuag% | 60% | 39% | 70% | |
Yam khoom tsim nyog
Xa, Shipping Thiab Pab
Lus nug
Q1: Koj tuaj yeem tau txais tus nqi zoo li cas sai sai?
A: Tam sim ntawd thaum lub zog ua haujlwm thiab lub siab raug qhia, peb yuav ua tus nqi kom tiav ib zaug.
Q2: Vim li cas koj thiaj yuav ntseeg tias peb zoo?
A: 20 xyoo raug kev tsim, ib qho ntawm cov kev lag luam hauv kev lag luam
Kev Tswj Kev Tswj: Muaj 8 subsystems, tsim, tsim, ntsuas, kev tshuaj xyuas, kev ntsuas kev ntsuas,
Q3.What txog kev tswj hwm?
A: kev kho cua sov, ntaub ntawv physics thiab chemistry tshuaj, kev tswj cov cuab yeej. Txhua cov txheej txheem yuav tsum tau ua haujlwm. 5 txoj kev zoo taw tes, Raw materialinspection, cov khoom specimen, NDT, hydrostatic test, Kho kom sov. Cov khoom yuav tsum raug kuaj los ntawm lwm tus neeg ua ntej xa.
Q4. Yuav ua li cas rau installation?
A: Thaum koj tau txais lub tshuab hluav taws xob, peb yuav coj koj mus ua ib qho kev npaj rau kev txhim kho.
