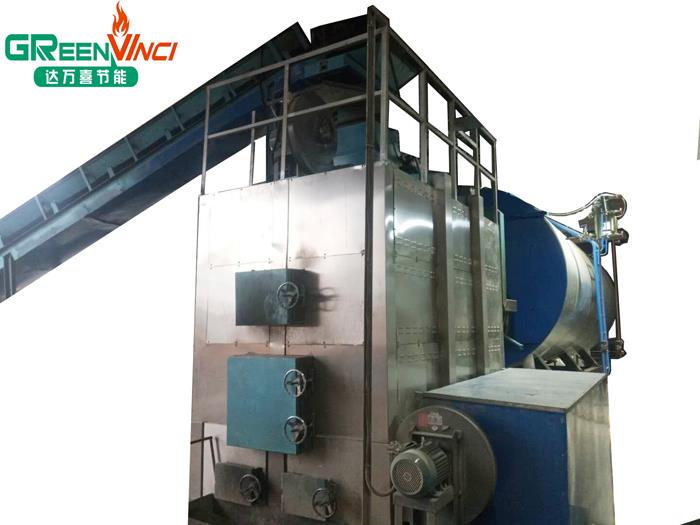

High efficiency wood chip biomass hlawv roj, daws teeb meem rau cov qhua tuaj noj mov.
Ua ntej VS Tom qab
1. Cov pa luam yeeb tsaus nti tsis muaj ntxiv, ua kom huv si
2. Ncaj qha hlawv, kev txuag qis VS semi-gasification, ntau dua kev ua haujlwm, txuag roj nqi 5-8%
3. Los ntawm kev pub noj-nqi zog ua haujlwm VS pib pub mis-txo 1 tus neeg ua haujlwm
Cov ntaub ntawv kawm

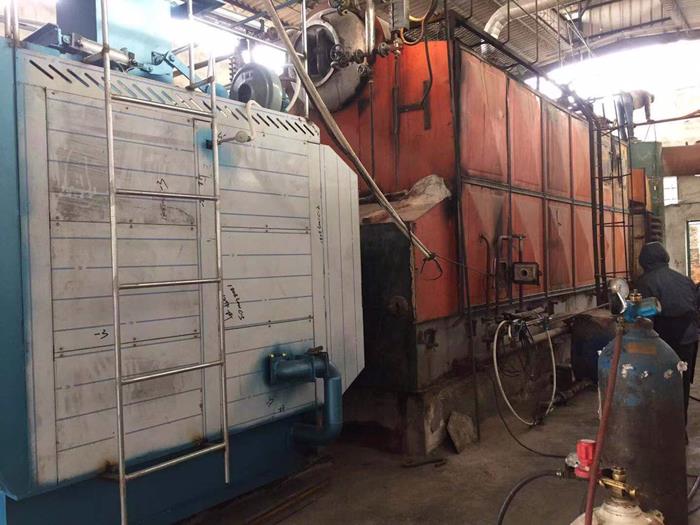

3.0 MKcal wood chip hlawv rau cov ntawv ntim khoom lag luam nyob hauv Suav teb
1. Cov neeg qhua qhov chaw thiab Yuav Tsum Tau Ua
Tam sim no siv saw saw kub hnyiab, hlawv cov roj ntoo nrog 20% noo noo, los muab lub zog cua sov rau cov ntawv ua, ua haujlwm 12-14 teev nyob rau ib hnub. Cov neeg siv khoom xav daws qhov teeb meem ua rau muaj cov pa luam yeeb dub - tsis tuaj yeem ncav cuag ib puag ncig tus qauv, thiab lub zog tsis txaus siab vim tias txoj kev hlawv ncaj qha.
2. Greenvinci Tshuaj
Peb tau tham txog qhov project thiab xa tus engineer mus xyuas thaj chaw khiav kom tau txhua yam. Tom qab ntawd tau sab laj nrog peb chav haujlwm technical los daws teeb meem. Peb kuaj xyuas ntau zaus, thaum kawg muaj qhov kev npaj zoo tshaj plaws rau cov qhua tuaj noj mov.
Kev ntsuas ntsuas tus ntsuas ntsuas ntawm cov roj siv biomass siv
3. Tsog
Ua ntej VS Tom qab
1. Cov pa luam yeeb tsaus nti tsis muaj ntxiv, ua kom huv si
2. Ncaj qha hlawv, kev txuag qis VS semi-gasification, ntau dua kev ua haujlwm, txuag roj nqi 5-8%
3. Los ntawm kev pub noj-nqi zog ua haujlwm VS pib pub mis-txo 1 tus neeg ua haujlwm
 |  |
Hais txog peb
GreenVinci yog Tuam Tshoj ua cov chaw tsim khoom siv hluav taws xob txuag hluav taws xob nrog kev paub txog 10 xyoo, tsom rau kev muab cov tshuaj ntsuab rau cov cua sov, tau pab ntau tshaj 1000 tus neeg muas zaub hauv ntau tshaj 30 lub teb chaws thiab cheeb tsam.
Txhawm rau hloov cov nqi roj siab xws li Roj Nkev, diesel, LPG, LNG, CNG, FO thiab lwm yam Thiab muaj cov pa paug hnyav xws li cov thee, cov nplaim taws ncaj qha rau hluav taws, nrog cov roj biomass ua rau cov phooj ywg ib puag ncig, txuag nqi thiab kev ua haujlwm siab.
Kev lag luam txheeb xyuas (tus nqi hauv USD)
Roj | Chav Nyob | Tus nqi kub （ Kcal ） | Nqe (USD) | Qhov Tau Txais | Nqi （ USD / T ） | Tus nqi sib piv | Cov lus ceeb toom |
Hluav Taws Xob | kw | 860 | $ 0.12 | 700 | $ 84 | 114% | |
Diesel | kg | 10200 | $ 0.87 | 65 | $ 57 | 44% | |
Natrual roj | m 3 | 8500 | $ 0.49 | 80 | $ 39 | txuj | |
Pellet | kg | 4000 | $ 0.12 | 208 | $ 25 | -36% | |
tej daim ntoo | kg | 3600 | $ 0.07 | 230 | $ 16 | -59% | Pyrolysis |
Pob zeb | kg | 5500 | $ 0.08 | 178 | $ 14 | -64% |
* Coj tus nqi roj los tsim 1 T chav ua piv txwv, tus nqi yuav tau sib txawv vim tias tus nqi roj sib txawv thiab boiler thermal efficiency.
Peb cov khoom
Txoj ntsiab cai ua haujlwm
Biomass roj cia rau noj rau hauv lub tshuab ua kom kub siab, roj ib hlis roj, pyrolysis kev sib txuas, tsim kom muaj hluav taws thiab roj sib txuas - H 2 , CO, CH 4 thiab lwm yam, muaj kev sib txuas tag nrho, ntau dua kev siv hluav taws xob ntau txog li 90%.
 |  |  |
 |  |  |
| Parameter ntawm biomass gasifier | |||
| Los ntawm txhais tes tawm | |||
| Yam Tsis Muaj. | GV-240-G | GV-360-G | GV-480-G |
| Rau Cov Zis (Kcal) | 240 × 10 4 | 360 × 10 4 | 480 × 10 4 |
| Siv Tau Roj | ntoo chips, pellet | ntoo chips, pellet | ntoo chips, pellet |
| Kev tsuj roj | 380V | 380V | 380V |
| Cov kab ke pub mis | Pneumatic | Pneumatic | Pneumatic |
| Kev ntxuav tu | Phau Ntawv / Pib | Phau Ntawv / Pib | Phau Ntawv / Pib |
| Kev Siv Hluav Taws Xob | 9.25KW | 17KW | 21.5KW |
| Roj noj (h) | 600kg / h | 900kg / h | 1200kg / h |
| Qhov Coob | 2396 * 2800 * 3158mm | 3103 * 2340 * 3354mm | 3303 * 2340 * 3354mm |
| Khoom hnyav tag nrho | 5000kg | 10200kg | 10600kg |
| Nozzle los ntawm hauv av | 1252mm | 1416 hli | 1436 hli |
| Nozzles dia | 560 hli | 596mm | 636mm |
| Chamber kub | ≦ 900degree | ≦ 900degree | ≦ 900degree |
| Nplaim taws temprature | ≦ 1100 degree | ≦ 1100 degree | ≦ 1100 degree |
| Nozzle cov khoom siv | 310s / 316 SS | 310s / 316 SS | 310s / 316 SS |
| Tswjhwm system | Zaus hloov pauv, tsis siv neeg kub tas li, kov lub npov | Zaus hloov pauv, tsis siv neeg kub tas li, kov lub npov | Zaus hloov pauv, tsis siv neeg kub tas li, kov lub npov |
| Roj av taws ua kom sov | Siab kub - tiv thaiv corundum xis mas hauv ib qho nchuav molding | Siab kub - tiv thaiv corundum xis mas hauv ib qho nchuav molding | Siab kub - tiv thaiv corundum xis mas hauv ib qho nchuav molding |
| Cov kab ke pub mis | siv tawv conveyor | siv tawv conveyor | siv tawv conveyor |
Cov khoom lag luam yav tom ntej
Daim ntawv thov roj biomass dav: daim tawv ntoo, cov khib nyiab ntoo, pellet, pob zeb ci, xibtes plhaub, cashew plhaub thiab lwm yam.
Cov pa phem huv: "0" CO 2 ; ze rau "0" SO 2 ; tsuas yog thev naus laus zis, TSIS X txo los ntawm ntau dua 60%.
Lub sijhawm ua haujlwm ruaj khov: tsis siv neeg kaw kev kub siab, dhau ntawm qhov ntsuas kub thiab ultra-tsis tshua muaj dej. Interlock tswj.
Internet + ntse tswj: PLC, VFD, kov tshuaj ntsuam tswj - tsis siv neeg slag tawm, pub mis, qhov kub thiab lub siab tsis tu ncua, ua kom zoo thiab ruaj khov, qis ua haujlwm siv tsis tau.thiab tswj.
Cov ntawv thov
1) 3.6 M kcal biomass gasifier siv rau 6-T roj boiler hauv Chaw Tiv Thaiv Kev Tiv Thaiv Ib puag ncig （hloov roj） | 2) 7.2 M kcal Biomass gasifier siv rau 12-T roj boiler hauv Cov Khoom Noj Khoom Noj Hoobkas （hloov roj） | 3) 6 M kcal Biomass gasifier siv rau 10-T roj boiler hauv Chaw Tsim Tshuaj |
|  | |
4) 3.6 M kcal biomass gasifier txuas rau 3500kw thermal roj boiler hauv glycerin ntau lawm cog | 5) 3.0M kcal biomass gasigier txuas rau 5-tuj ntsug boiler hauv Thaib teb (hloov cov roj） | 6) 3.6 M kcal biomass gasifier txuas rau 6-T saw boiler hauv Cov Khoom Noj Khoom Noj & Dej Haus (hloov cov thee) |
|
|
|
1.Malaysia, 3.6 M Kcal nrog qeeb mentshis kom qhuav cov hmoov ntoo.
2.Surabaya, Indonesia, Phaj Mill, 1.2 M Kcal nrog 2-T thermal roj rhaub
3.Bangkok, Thaib Teb, Xovxwm Phaj Cog, 6.0 M Kcal nrog 10-tuj Gas Chav Boiler
4.Singapore, Hlau Rov Siv Cov Nroj Tsuag, 1.8 M Kcal nrog Qeeb Kom Qhuav Kiln rau kom qhuav Tsis yog hlau rau Cov Sludge
5.Txhob Isdias, Hlau Tsim Khoom, 2.4 M Kcal rau cov hluav taws kub cua qhwv
6.Bolivia, Lub Zeb Txiag, 1.2 M Kcal nrog Qhov Cub Rau Cov Huab Cua Kub Kom Qhuav Cov txhuv
.........
Peb cov kev pabcuam
FQA
1) Dab tsi yog lub sijhawm lav?
A: 1 xyoos rau qhov loj thiab lub neej ntev kev thauj tus nqi qis.
2) Puas muaj kev xav tau rau cov khoom siv raw ??
A: loj <15cm ya="" raws=""><>
3) Cov neeg siv puas tuaj yeem pom cov khoom siv khiav hauv rhiav?
A: Yog lawm, peb muaj ntau qhov chaw khiav ze rau ntawm peb lub hoobkas, ntawm 1.2 M Kcal txog 9.0 M Kcal biomass burner uas tuaj yeem qhia tau li cas peb lub qhov cub ua haujlwm nrog boiler lossis lwm yam khoom siv thermal rau cov chaw sib txawv.
4) Lub sijhawm xa khoom?
A: Txog 30-40 hnub tom qab tso nyiaj (qhov kev txiav txim ceev tuaj yeem tham tau).
Cim npe nrov: high efficiency wood chip biomass burner, tuam ntxhab, lwm tus muag khoom, customized, tsis siv neeg, ib puag ncig, tsis muaj kuab paug, txuag nqi, txuag hluav taws xob, txuag loj
