Lub biomass burner xa cov roj mus rau saum hopper los ntawm txoj siv conveyor. Tom qab ntawd cov roj nkag mus rau hauv lub qhov cub los ntawm lub qhov cub kaw thiab muab sib npaug ntawm cov grate. Cov roj tuab yog nruab nrab ntawm 150-350mm. Cov roj biomass yog preheated thiab qhuav rau ntawm grate, thiab ces nkag mus rau qhov kub-kub oxidation cheeb tsam kom tawg tawm combustible gases xws li CO, H2, thiab CnHn. Ib feem ntawm cov roj combustible yog hlawv nyob rau hauv lub cub tawg, thiab lwm qhov yog tawm mus rau lub burner thiab ces hlawv nrog oxygen rau ib tug thib ob lub sij hawm los tsim ib tug semi-gasification compound thiab ua tiav combustion.
Cov tshauv hlawv yuav txuas ntxiv thawb tawm ntawm lub qhov cub los ntawm kev txav grate thiab tso tawm los ntawm lub tshuab tshem tawm tshauv.

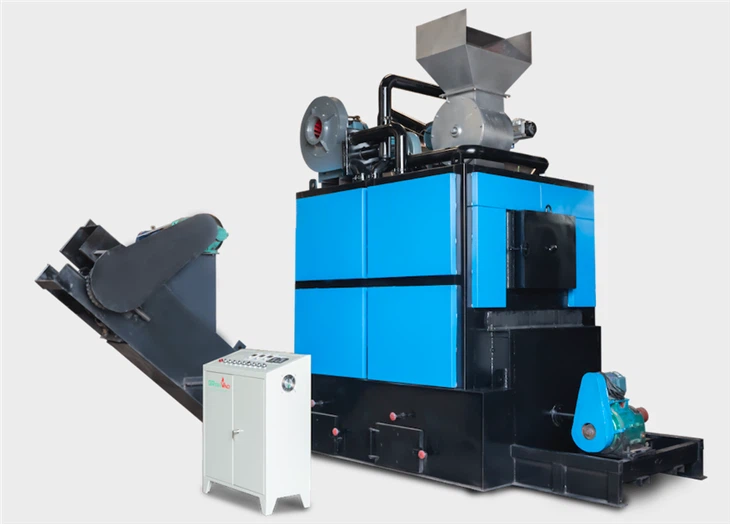

GreenVinci Industrial Solid Waste Burner rau boiler yog tsim los siv nrog cov boiler, tshuab ziab khaub ncaws, kilns thiab melting rauv los muab lub zog kub rau cov kab ntau lawm.
Roj: ntaub pov tseg, daim txhuam cev, tawv, ntawv pov tseg, yas thiab lwm yam.
Case kawm
Tom qab kev sib tham, cov neeg siv khoom yog Indian boiler chaw tsim khoom nrog cov neeg siv khoom siv cov ntawv zeb. Cov ntawv zeb cov neeg siv khoom tsim khoom suav nrog BOPP (polypropylene) pov tseg, uas muaj 5% cov ntawv pov tseg. Cov neeg siv khoom xav yuav cov khoom pov tseg gasifier kom sov 20 tuj boiler. Cov khoom ntawm polypropylene tom qab tag nrho combustion yog carbon dioxide thiab dej. combustion equation is: 2 (C3H6) n + 9no2 ----- 6nco2 + 6nh2o. Qhov kub ntawm melting seem yog 240 degree, thiab qhov decomposition kub yog ntau tshaj 350 degree, uas yog siab tshaj nws decomposition kub rau combustion. Tsis muaj cov blocks uas ua rau ntsaws cov kav dej thiab cov cua sov cia. Cov nqi hluav taws xob yog 11671 kcal / kg. Nws qhia tau hais tias 20 tuj boiler yuav tsum hlawv ntau tshaj 1 tuj / teev ntawm polypropylene pov tseg. Txhawm rau tiv thaiv kom tsis txhob muaj lub hau npog ntawm cov tee dej thaiv los ntawm qhov kub thiab txias dissolution ntawm cov khib nyiab rau hauv lub gasifier, nws yog tsim los sib tov ntoo chips rau hlawv los daws qhov teeb meem.
Khoom siv: customized 20 tuj khoom khib nyiab gasifier (kev tsim qauv tsim nyog rau biomass ntoo chip thiab polypropylene pov tseg);
Roj siv: polypropylene pov tseg thiab ntoo chips nrog cov dej noo tsawg dua lossis sib npaug li 30%
Pub system: kaw, tsis muaj pa luam yeeb, haum rau ntau cov roj tsis siv neeg pub noj
Lub sijhawm ua haujlwm: 24 teev / hnub * 28 hnub
Cov txiaj ntsig zoo
1. Tsis tshua muaj kub pyrolysis gasification combustion hom, tsis muaj tar, tsis muaj dej khib nyiab, tag nrho combustion, tsis muaj carbon, siab thermal efficiency;
2. Kev nqis peev tsawg, tus nqi siab ua haujlwm, ruaj khov thiab ua haujlwm tsis tu ncua, muaj kev nyab xeeb thiab tsis muaj kev pheej hmoo;
3. Cov cuab yeej tshwj xeeb ntawm huab cua xa tawm ntawm rotary grate enables cov pa roj carbon monoxide hauv flue gas kom ncav cuag tus qauv;
4. Cov txheej txheem kev nyab xeeb thiab ruaj khov, kev tshawb fawb ywj pheej thiab kev loj hlob ntawm biomass nruam noj system, uas yog tsim rau ntau yam roj;
5. Cov khoom siv ua haujlwm nyob rau hauv micro tsis zoo siab, cov roj kub kub tsis xau, muaj kev nyab xeeb thiab ruaj khov, thiab lub rooj cob qhia ntau lawm yog huv si yam tsis muaj ntxhiab tsw thiab muaj kuab paug;
6. Siab automation, tus nqi zog tsawg. Tsuas yog ib tus neeg ua haujlwm thiab tus neeg tsav tsheb forklift yuav tsum tau ua haujlwm ib lub boiler;
Technical specifications
Peev xwm ntawm 0.3 tuj mus rau 30 tuj, tsuas yog ob peb tus qauv qhia.
|
Muaj peev xwm |
300 kg |
500 kg |
7 50kg |
1000 kg |
|
Roj |
Ntoo chips, BOPP, ntaub pov tseg, tawv, daim txhuam cev thiab lwm yam khoom khib nyiab |
|||
|
Kub |
800 ~ 1200 degree |
|||
|
Loj |
2.6*2.6*3m |
3*3*3m |
5.2*2.6*3m |
6*3*3m |
|
Tus naj npawb ntawm rotating grate |
1 |
1 |
2 |
2 |
|
Hluav taws xob txee |
Tag nrho cov motors yog nruab nrog zaus converter Converter hom: Delixi |
|||
Peb qhov kev pabcuam
Kev muag khoom ua ntej
Factory thiab khiav qhov chaw mus saib!
Kev them nyiaj yug hauv online ntev lub neej thiab kev saib xyuas tus nqi qis!
FAQ
(1) Dab tsi yog cov qauv tsim ntawm lub tshuab?
Hom, tus nqi calorific thiab ntom ntawm roj, huab cua ntim, combustion kub, tso pa ntim, tso pa combustion lub sij hawm, thiab lwm yam.
(2) Dab tsi yog qhov zoo thiab qhov tsis zoo ntawm lub tshuab?
Qhov zoo:
A: Cov khoom pov tseg yog pyrolyzed, gasified thiab combusted nyob rau hauv anoxic mob, yog li cov hmoov av muaj tsawg heev uas zoo heev eases cov pa pa kho.
B: Cov txheej txheem gasification thiab combustion tshwj xeeb, txais yuav high-temperature gasification pyrolysis thiab precise air supply volume control system, tsis muaj cov pa phem thib ob, tuaj yeem ncav cuag tus qauv tso pa tawm.
C: Txais cov txheej txheem rotating grate thiab raug tshem tawm combustion tshuab kom tsis txhob caking thiab slagging.
D: Thaum tus nqi calorific ntawm cov khoom pov tseg ntau tshaj 2400 kcal, tsis muaj roj ntxiv rau kev hlawv, thiab qhov kub ntawm chav kub kub yog ntau tshaj 1000 degree.
E: Lub sijhawm luv luv, kev ua haujlwm ua haujlwm thiab thaj chaw me me hauv av.
Demerits: Tus nqi siab.
(3) Cov dej noo ntau npaum li cas yuav txaus siab ntawm cov roj?
Tsawg dua lossis sib npaug li 30%
(4) Qhov loj ntawm roj yuav tsum yog dab tsi?
Cov ntoo chips tuaj yeem ntev 200 hli thiab 50 hli dav, thiab cov yas zaj duab xis tuaj yeem siv tom qab crushing.
